Hyper-V VM to Azure¶

Convert VM with Hyper-V Manager¶

Open Hyper-V Manager

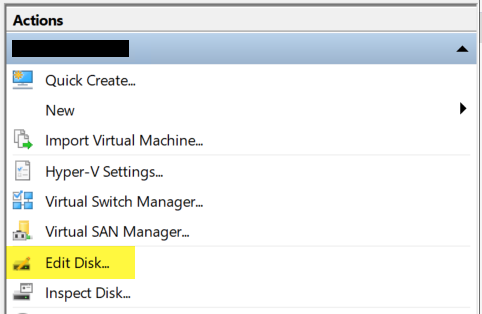

Navigate to Actions / Edit Disk...

Edit Disk...

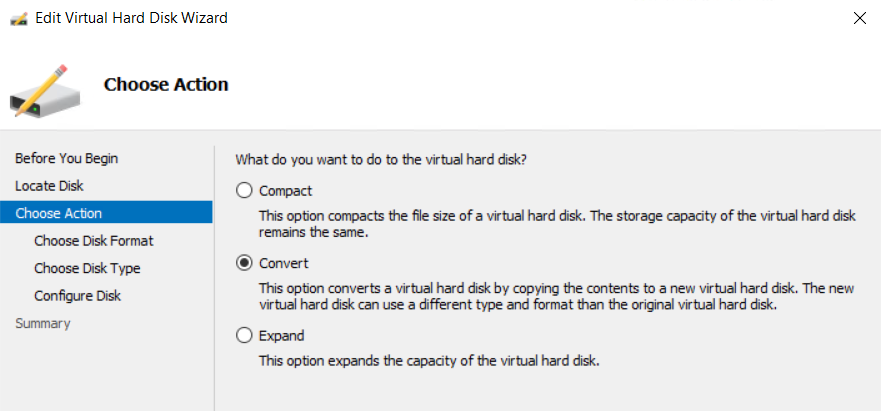

Convert

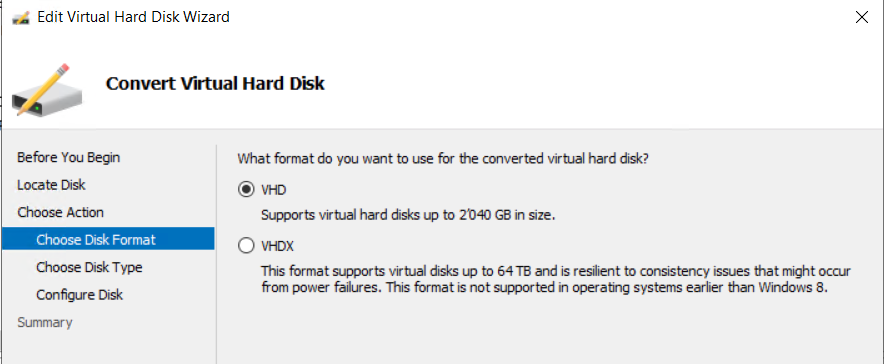

VHD

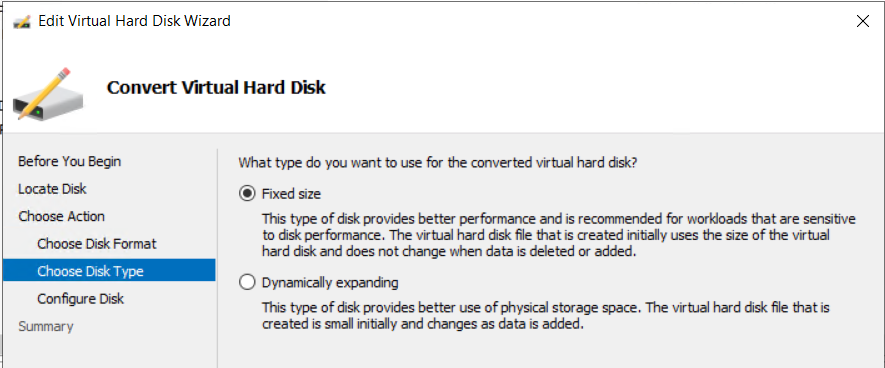

Fixed size

Prepare VM¶

based on Microsoft Article

Start the VM and install all Windows Updates and reboot

After reboot start PowerShell:

In Cmd:

diskpart.exe
san policy=onlineall
exit

sfc.exe /scannow

netsh.exe winhttp reset proxy

Set-ItemProperty -Path HKLM:\SYSTEM\CurrentControlSet\Control\TimeZoneInformation -Name RealTimeIsUniversal -Value 1 -Type DWord -Force
Set-Service -Name w32time -StartupType Automatic

powercfg.exe /setactive SCHEME_MIN
powercfg /setacvalueindex SCHEME_CURRENT SUB_VIDEO VIDEOIDLE 0

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Session Manager\Environment' -Name TEMP -Value "%SystemRoot%\TEMP" -Type ExpandString -Force
Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Session Manager\Environment' -Name TMP -Value "%SystemRoot%\TEMP" -Type ExpandString -Force

Get-Service -Name BFE, Dhcp, Dnscache, IKEEXT, iphlpsvc, nsi, mpssvc, RemoteRegistry | Where-Object StartType -ne Automatic | Set-Service -StartupType Automatic

Get-Service -Name Netlogon, Netman, TermService | Where-Object StartType -ne Manual | Set-Service -StartupType Manual

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server' -Name fDenyTSConnections -Value 0 -Type DWord -Force
Set-ItemProperty -Path 'HKLM:\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services' -Name fDenyTSConnections -Value 0 -Type DWord -Force

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\Winstations\RDP-Tcp' -Name PortNumber -Value 3389 -Type DWord -Force

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\Winstations\RDP-Tcp' -Name LanAdapter -Value 0 -Type DWord -Force

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name UserAuthentication -Value 1 -Type DWord -Force

Set-ItemProperty -Path 'HKLM:\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services' -Name KeepAliveEnable -Value 1  -Type DWord -Force
Set-ItemProperty -Path 'HKLM:\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services' -Name KeepAliveInterval -Value 1  -Type DWord -Force
Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\Winstations\RDP-Tcp' -Name KeepAliveTimeout -Value 1 -Type DWord -Force

Set-ItemProperty -Path 'HKLM:\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services' -Name fDisableAutoReconnect -Value 0 -Type DWord -Force
Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\Winstations\RDP-Tcp' -Name fInheritReconnectSame -Value 1 -Type DWord -Force
Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\Winstations\RDP-Tcp' -Name fReconnectSame -Value 0 -Type DWord -Force

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\Winstations\RDP-Tcp' -Name MaxInstanceCount -Value 4294967295 -Type DWord -Force

if ((Get-Item -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp').Property -contains 'SSLCertificateSHA1Hash')
{
    Remove-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name SSLCertificateSHA1Hash -Force
}

Set-NetFirewallProfile -Profile Domain, Public, Private -Enabled True

Enable-PSRemoting -Force
Set-NetFirewallRule -Name WINRM-HTTP-In-TCP, WINRM-HTTP-In-TCP-PUBLIC -Enabled True

Set-NetFirewallRule -Group '@FirewallAPI.dll,-28752' -Enabled True

Set-NetFirewallRule -Name FPS-ICMP4-ERQ-In -Enabled True

New-NetFirewallRule -DisplayName AzurePlatform -Direction Inbound -RemoteAddress 168.63.129.16 -Profile Any -Action Allow -EdgeTraversalPolicy Allow
New-NetFirewallRule -DisplayName AzurePlatform -Direction Outbound -RemoteAddress 168.63.129.16 -Profile Any -Action Allow

chkdsk.exe /f

Reboot VM

In Cmd:

bcdedit.exe /set "{bootmgr}" integrityservices enable
bcdedit.exe /set "{default}" device partition=C:
bcdedit.exe /set "{default}" integrityservices enable
bcdedit.exe /set "{default}" recoveryenabled Off
bcdedit.exe /set "{default}" osdevice partition=C:
bcdedit.exe /set "{default}" bootstatuspolicy IgnoreAllFailures
bcdedit.exe /set "{bootmgr}" displaybootmenu yes
bcdedit.exe /set "{bootmgr}" timeout 5
bcdedit.exe /set "{bootmgr}" bootems yes
bcdedit.exe /ems "{current}" ON
bcdedit.exe /emssettings EMSPORT:1 EMSBAUDRATE:115200

In PowerShell:

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\CrashControl' -Name CrashDumpEnabled -Type DWord -Force -Value 2
Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\CrashControl' -Name DumpFile -Type ExpandString -Force -Value "%SystemRoot%\MEMORY.DMP"
Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\CrashControl' -Name NMICrashDump -Type DWord -Force -Value 1

$key = 'HKLM:\SOFTWARE\Microsoft\Windows\Windows Error Reporting\LocalDumps'
if ((Test-Path -Path $key) -eq $false) {(New-Item -Path 'HKLM:\SOFTWARE\Microsoft\Windows\Windows Error Reporting' -Name LocalDumps)}
New-ItemProperty -Path $key -Name DumpFolder -Type ExpandString -Force -Value 'C:\CrashDumps'
New-ItemProperty -Path $key -Name CrashCount -Type DWord -Force -Value 10
New-ItemProperty -Path $key -Name DumpType -Type DWord -Force -Value 2
Set-Service -Name WerSvc -StartupType Manual

winmgmt.exe /verifyrepository

Make sure no other applications than TermService are using port 3389

netstat.exe -anob | findstr :3389
TCP    0.0.0.0:3389           0.0.0.0:0              LISTENING       4056
TCP    [::]:3389              [::]:0                 LISTENING       4056
UDP    0.0.0.0:3389           *:*                                    4056
UDP    [::]:3389              *:*                                    4056

tasklist /svc | findstr 4056
svchost.exe                   4056 TermService

In CMD:

mmc.exe

File / Add or Remove Snap-ins Add Group Policy Object Editor for Local Computer Navigate to Configuration\Windows Settings\Security Settings\Local Policies\User Rights Assignment

Check they're not blocked:

Deny access to this computer from the network

Deny log on through Remote Desktop Services

Check the:

Access this computer from the network

that the following groups should be listet:

Administrators
(Backup Operators)
Everyone
Users

Upload VM Disk¶

The Subscription must have Microsoft.Network and Microsoft.Compute registered under Resource providers

Open in Browser Azure Portal

Create a Ressource "Storage Account"

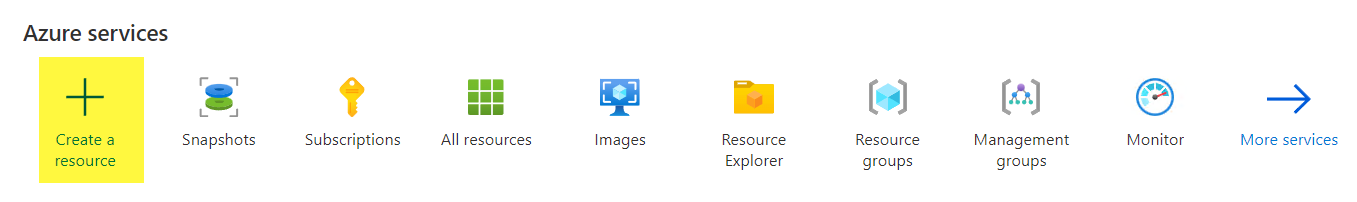

Create resource

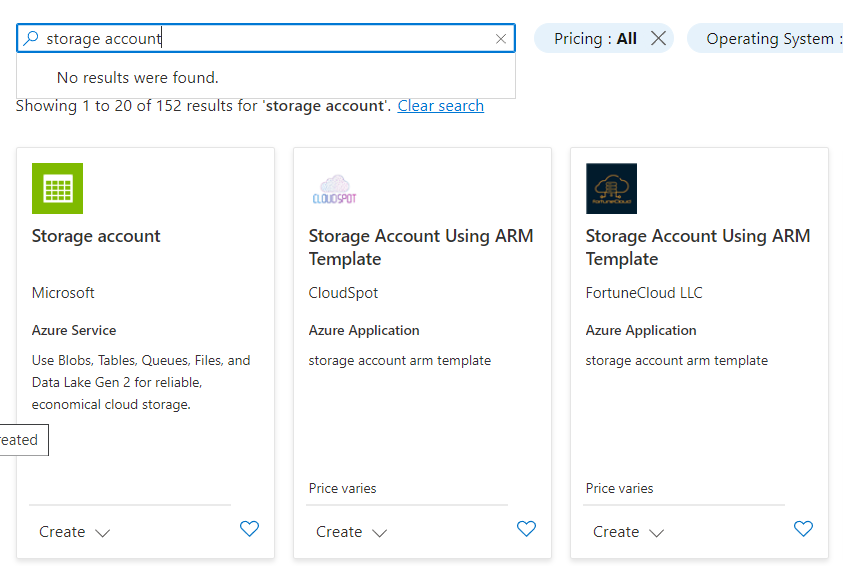

Storage Account

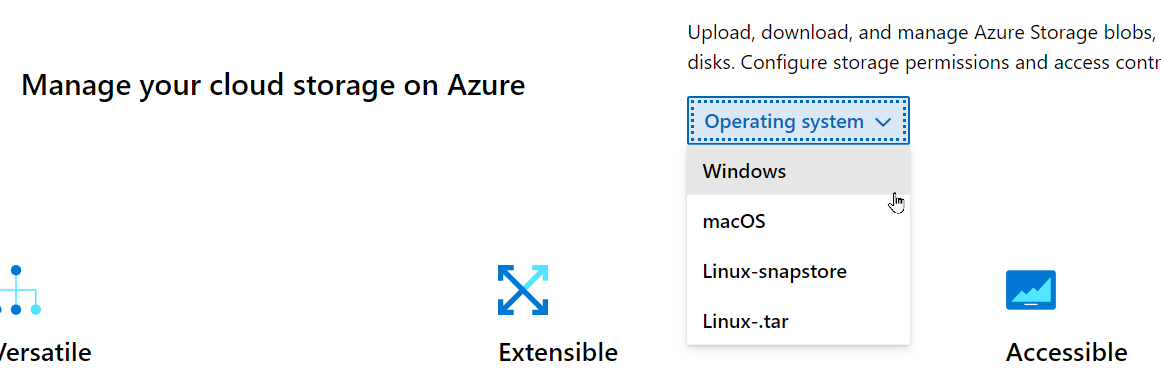

Download Link and choose the OS

Download MASE

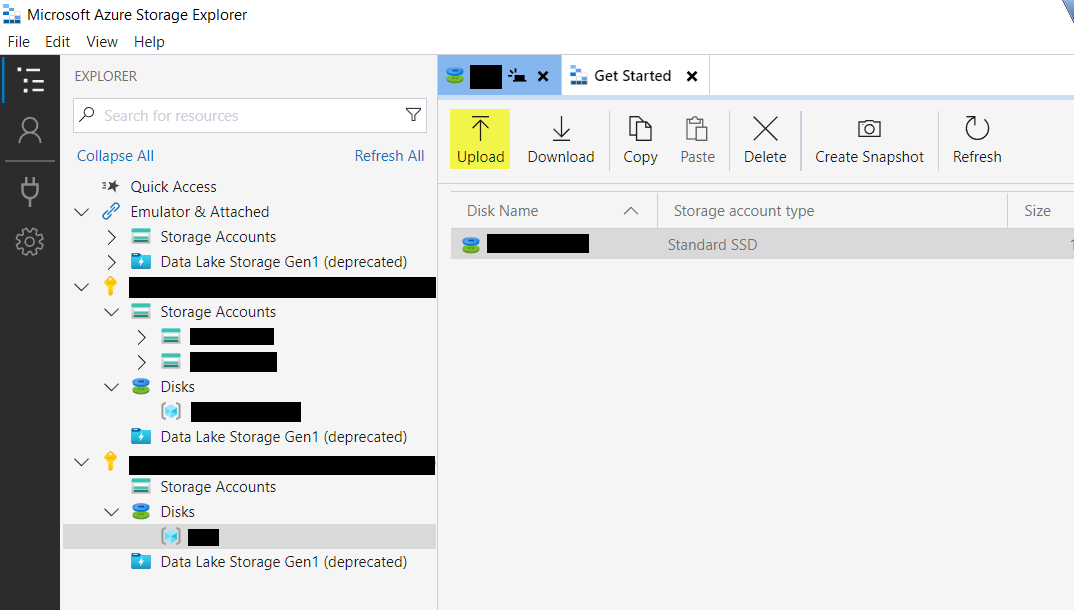

Install "Microsoft Azure Storage Explorer" and start it.

Microsoft Azure Storage Explorer

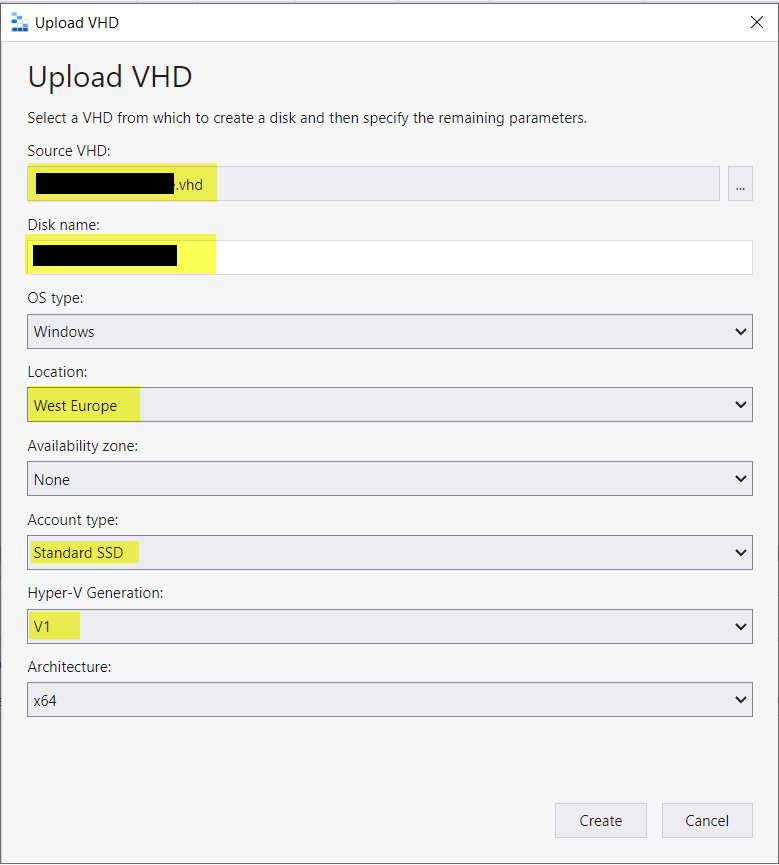

Select the file, enter a name and change account type to "Standard SSD" and click "Create" to upload the VM. This create a Disk in Azure after upload.

MASE Upload

Create VM from a VM Disk¶

Open in Browser Azure Portal

Navigate to the Disk and Create a Virtual Computer on the Disk

Create VM

Select the Subscription, Enter the Name of the VM.
Snapshot type must be Full
Change storage type default is Zone-redundant

Create Snapshot

Optional: Select the virtual machine and enter a DNS name:

DNS Name

First Run in Azure¶

In PowerShell:

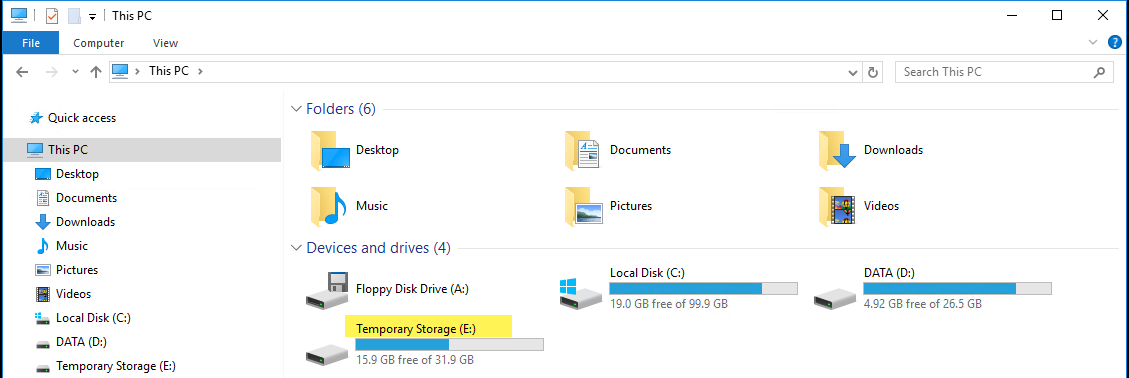

Open File Explorer and check the drive letter for the Temporary Storage

Temporary Storage

Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management' -Name PagingFiles -Value '<Drive Letter>:\pagefile.sys' -Type MultiString -Force

Reboot the VM

Check if Temporary Storage now not empty.

Shutdown the VM

In Azure Portal Navigate to the VM Navigate to Oveview and Shutdown the VM Navigate to Auto-shutdown set Enabled to on and define a Time and click on Save.

Create a Snapshot from a VM¶

In Azure:

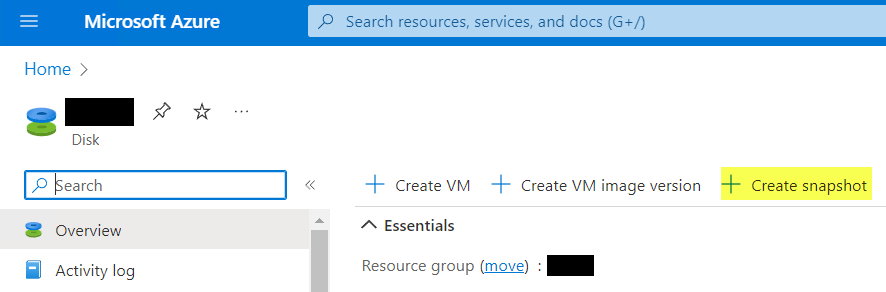

Navigate to the Disk and create a Snapshot

Create Snapshot

Select the Subscription, Enter the Name of the VM.
Snapshot type must be Full
Change storage type default is Zone-redundant

Create Snapshot

Create a VM from a Snapshot¶

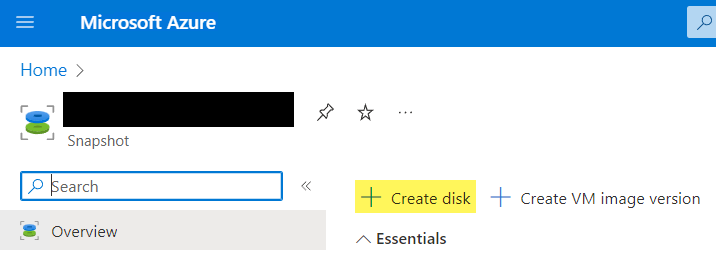

Navigate to the Snapshot and click on Create Disk

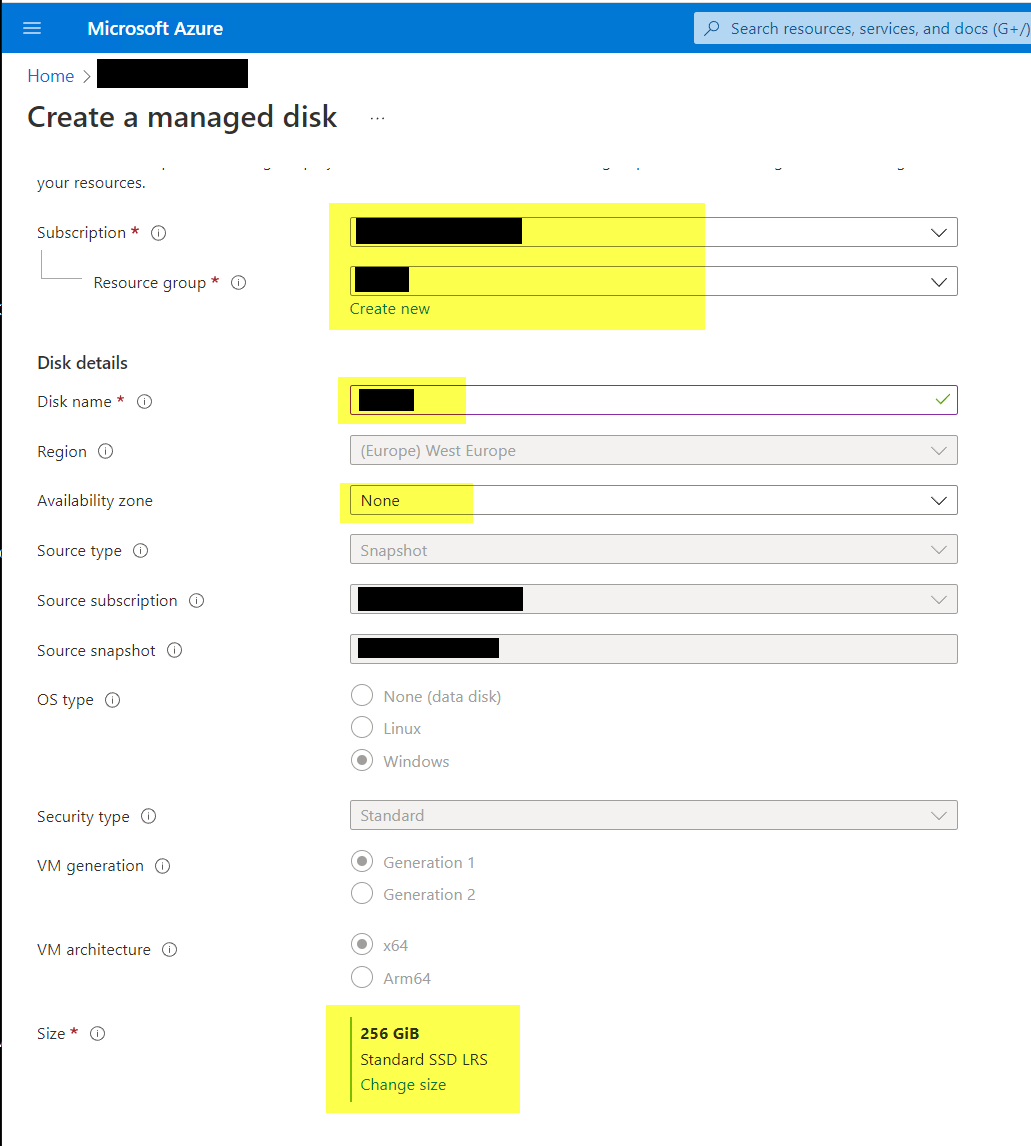

Create Disk

Select the Subscription, Enter the Name of the Snapshot.
Choose the Availibity Zone
Change storage type to Standard SSD

Create Disk

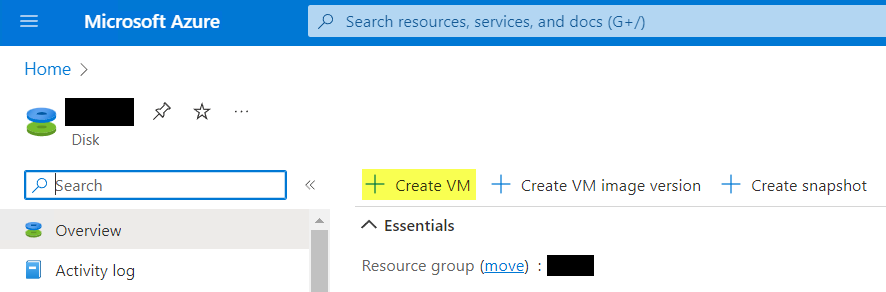

Naviagte to the Disk and Create VM

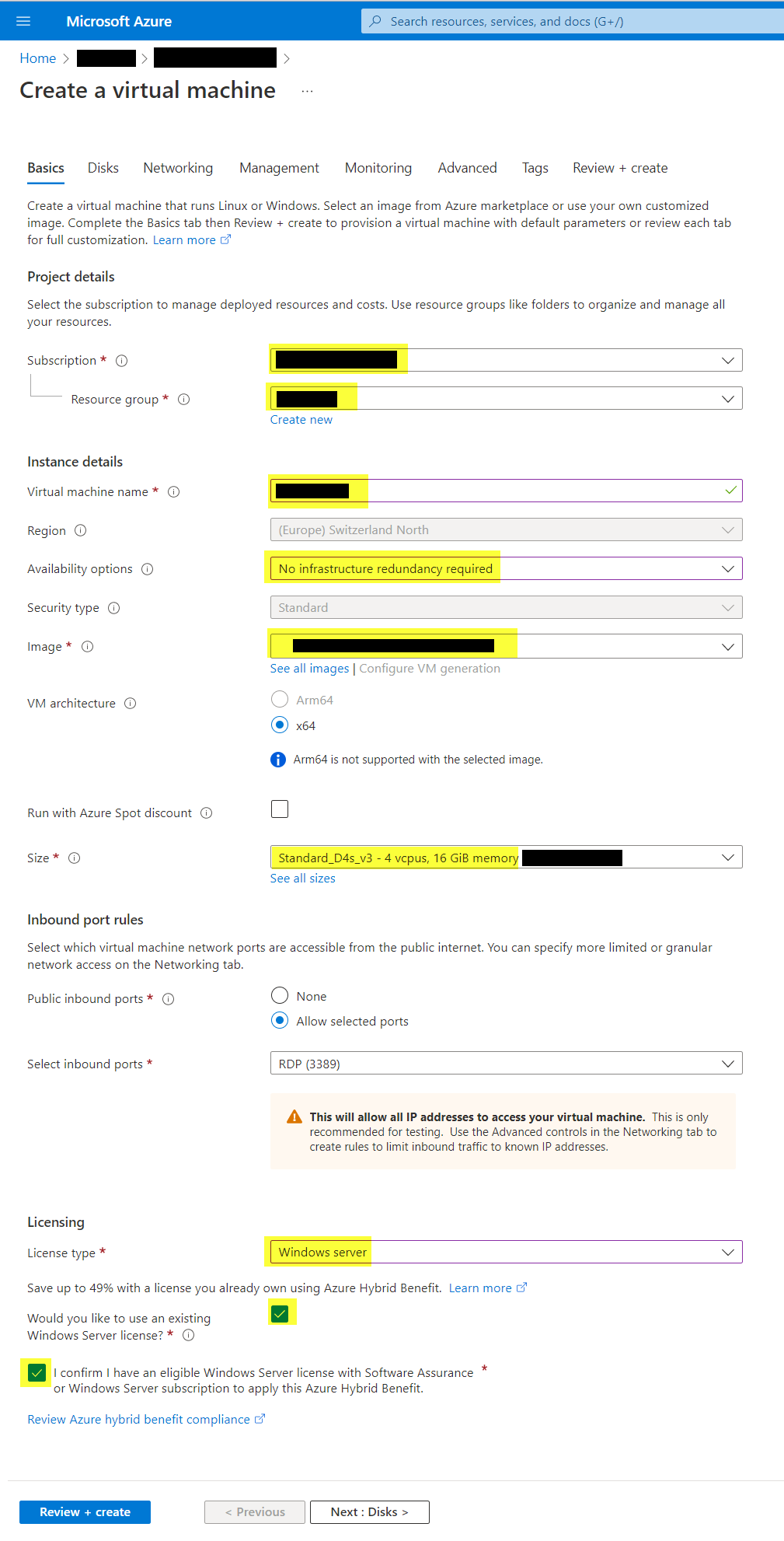

Create VM

Select the Subscription, Enter the Name of the VM.
Select th Availabity option, for DEV VMs can you also be choose No infrastructure redundancy requeried.
Choose the Size for use we use the D4s_v3 with 4 vCPUs and 16GB.
Choose the License Type as example Windows Server
If you have already have a license you can select booth checkboxes.

Create VM

Start/Stop VM¶

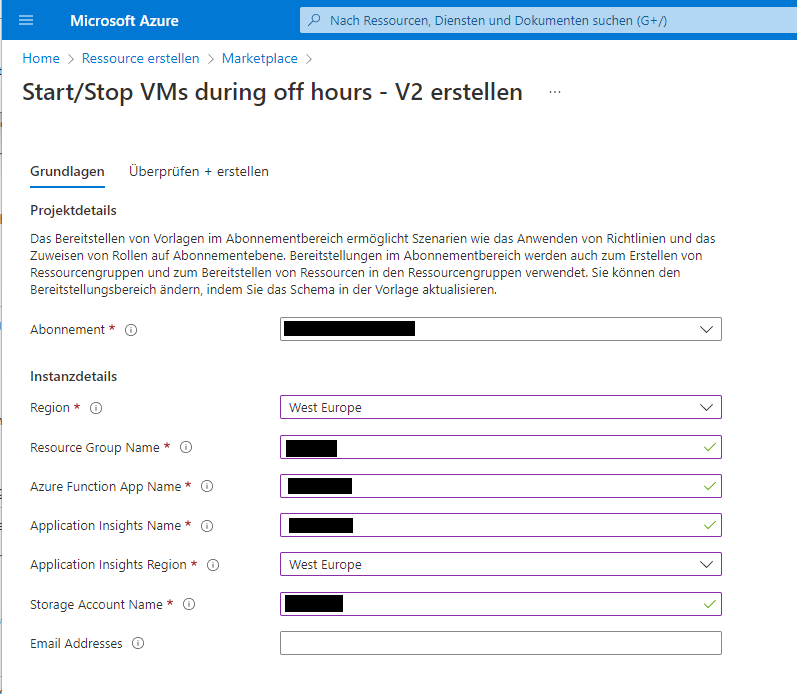

Create resource "Start/Stop VMs during off hours - V2"

Start/Stop VMs during off hours - V2

Edit Logic App

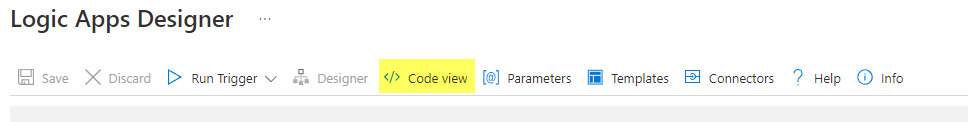

Show Code View

Then "Save" it and wit "Run trigger" it can run it on time.

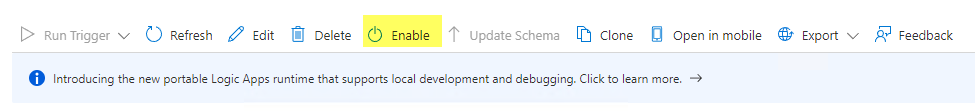

Enable Logic App

Example Logic App ..._Scheduled_start

{
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "actions": {
            "Function-Catch": {
                "actions": {
                    "Terminate": {
                        "inputs": {
                            "runError": {
                                "code": "@{outputs['Scheduled']('statusCode')}",
                                "message": "@{body('Scheduled')}"
                            },
                            "runStatus": "Failed"
                        },
                        "runAfter": {},
                        "type": "Terminate"
                    }
                },
                "runAfter": {
                    "Function-Try": [
                        "Failed",
                        "Skipped",
                        "TimedOut"
                    ]
                },
                "type": "Scope"
            },
            "Function-Success": {
                "actions": {},
                "runAfter": {
                    "Function-Try": [
                        "Succeeded"
                    ]
                },
                "type": "Scope"
            },
            "Function-Try": {
                "actions": {
                    "Scheduled": {
                        "inputs": {
                            "body": {
                                "Action": "start",
                                "EnableClassic": false,
                                "RequestScopes": {
                                    "ExcludedVMLists": [],
                                    "VMLists": [
                                        "/subscriptions/[Subscription-ID]/resourceGroups/[Resource group name]/providers/Microsoft.Compute/virtualMachines/[VM Name]"
                                    ]
                                }
                            },
                            "function": {
                                "id": "/subscriptions/[Subscription-ID]/resourceGroups/[Resource group name]/providers/Microsoft.Web/sites/[FunctionName]/functions/Scheduled"
                            }
                        },
                        "runAfter": {},
                        "type": "Function"
                    }
                },
                "runAfter": {},
                "type": "Scope"
            }
        },
        "contentVersion": "1.0.0.0",
        "parameters": {},
        "triggers": {
            "Recurrence": {
                "evaluatedRecurrence": {
                    "frequency": "Week",
                    "interval": 1,
                    "schedule": {
                        "hours": [
                            "8"
                        ],
                        "minutes": [
                            0
                        ],
                        "weekDays": [
                            "Saturday"
                        ]
                    },
                    "timeZone": "W. Europe Standard Time"
                },
                "recurrence": {
                    "frequency": "Week",
                    "interval": 1,
                    "schedule": {
                        "hours": [
                            "8"
                        ],
                        "minutes": [
                            0
                        ],
                        "weekDays": [
                            "Saturday"
                        ]
                    },
                    "timeZone": "W. Europe Standard Time"
                },
                "type": "Recurrence"
            }
        }
    },
    "parameters": {}
}

Example Logic App ..._Scheduled_stop

{
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "actions": {
            "Function-Catch": {
                "actions": {
                    "Terminate": {
                        "inputs": {
                            "runError": {
                                "code": "@{outputs['Scheduled']('statusCode')}",
                                "message": "@{body('Scheduled')}"
                            },
                            "runStatus": "Failed"
                        },
                        "runAfter": {},
                        "type": "Terminate"
                    }
                },
                "runAfter": {
                    "Function-Try": [
                        "Failed",
                        "Skipped",
                        "TimedOut"
                    ]
                },
                "type": "Scope"
            },
            "Function-Success": {
                "actions": {},
                "runAfter": {
                    "Function-Try": [
                        "Succeeded"
                    ]
                },
                "type": "Scope"
            },
            "Function-Try": {
                "actions": {
                    "Scheduled": {
                        "inputs": {
                            "body": {
                                "Action": "stop",
                                "EnableClassic": false,
                                "RequestScopes": {
                                    "ExcludedVMLists": [],
                                    "VMLists": [
                                        "/subscriptions/[Subscription-ID]/resourceGroups/[Resource group name]/providers/Microsoft.Compute/virtualMachines/[VM Name]"
                                    ]
                                }
                            },
                            "function": {
                                "id": "/subscriptions/[Subscription-ID]/resourceGroups/[Resource group name]/providers/Microsoft.Web/sites/[FunctionName]/functions/Scheduled"
                            }
                        },
                        "runAfter": {},
                        "type": "Function"
                    }
                },
                "runAfter": {},
                "type": "Scope"
            }
        },
        "contentVersion": "1.0.0.0",
        "parameters": {},
        "triggers": {
            "Recurrence": {
                "evaluatedRecurrence": {
                    "frequency": "Week",
                    "interval": 1,
                    "schedule": {
                        "hours": [
                            "12"
                        ],
                        "minutes": [
                            0
                        ],
                        "weekDays": [
                            "Sunday"
                        ]
                    },
                    "timeZone": "W. Europe Standard Time"
                },
                "recurrence": {
                   "frequency": "Week",
                    "interval": 1,
                    "schedule": {
                        "hours": [
                            "12"
                        ],
                        "minutes": [
                            0
                        ],
                        "weekDays": [
                            "Sunday"
                        ]
                    },
                    "timeZone": "W. Europe Standard Time"
                },
                "type": "Recurrence"
            }
        }
    },
    "parameters": {}
}
