Word Add-In width SPFx using SharePoint¶

References¶

App Registration¶

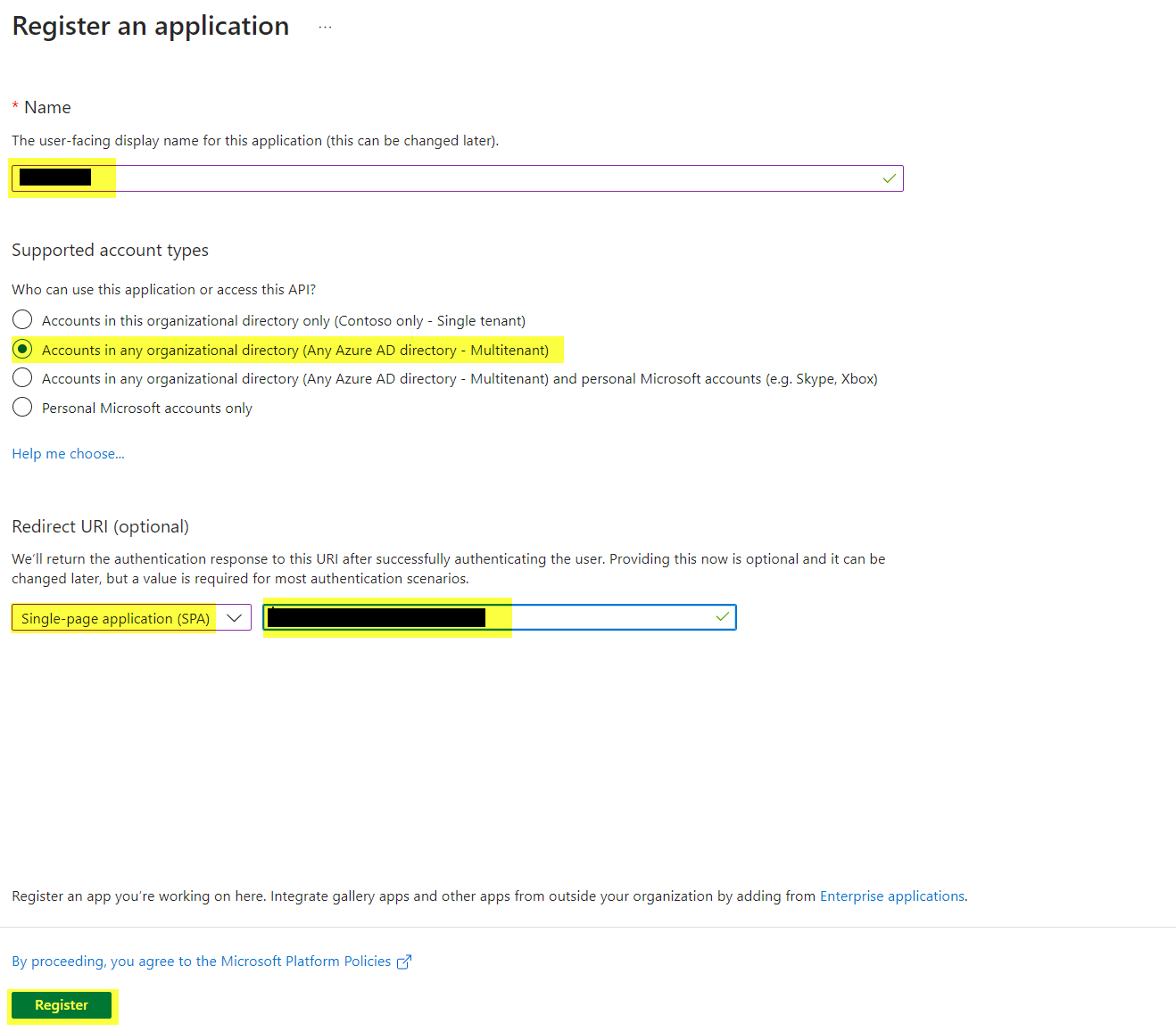

click on New registration

Name: [Application Name] Supported account types: Accounts in any organizational directory (Any Azure AD directory - Multitenant) Redirect Url: Single page application (SPA) [Url to Service] as example https://brave-water-033784703.3.azurestaticapps.net/taskpane.html

Register App

Edit the Registration:

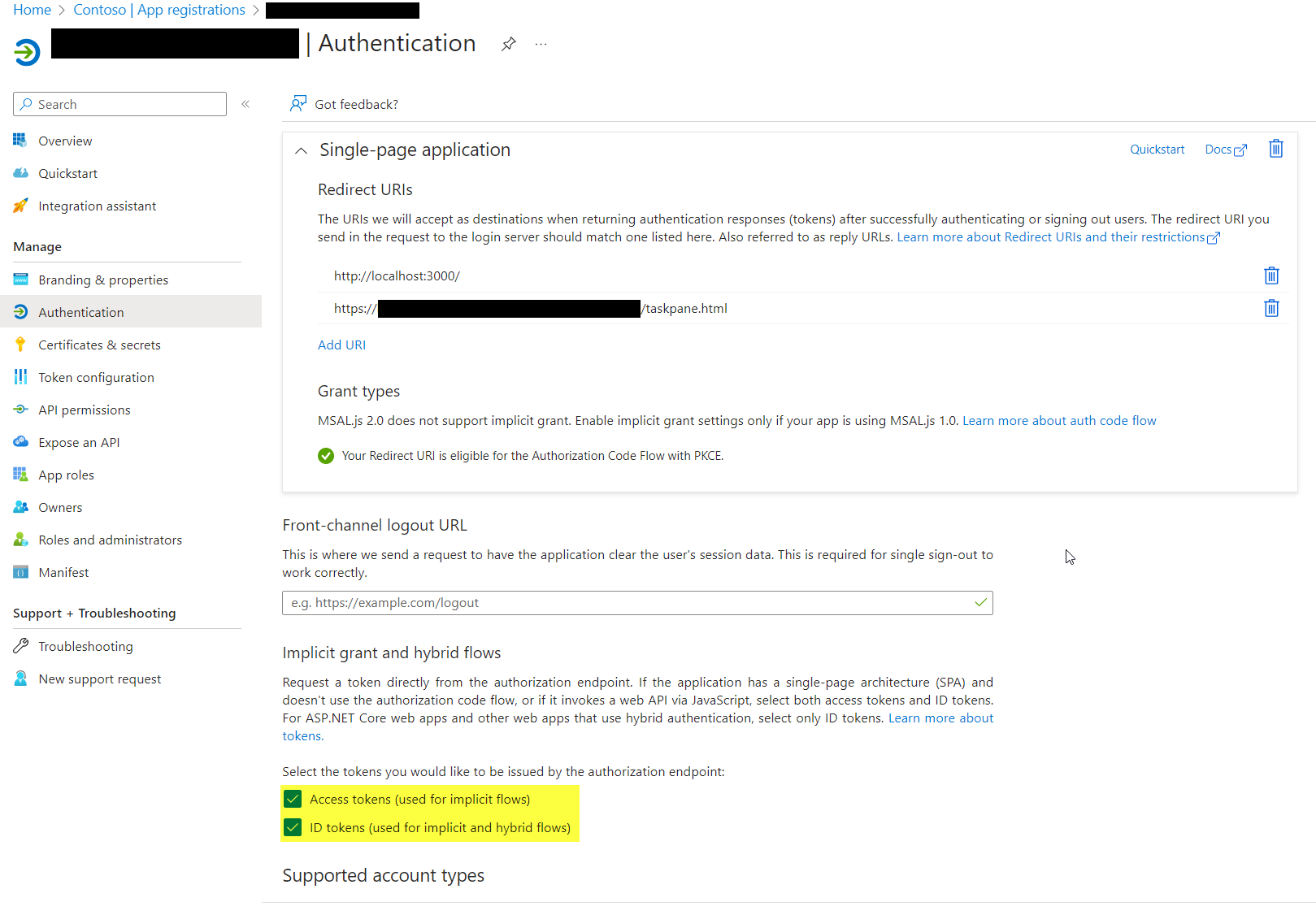

In Tab Authentication¶

Register App Authentication

Check Access tokens (used for implicit flows)

Check ID tokens (used for implicit and hybrid flows)

In Tab API permission¶

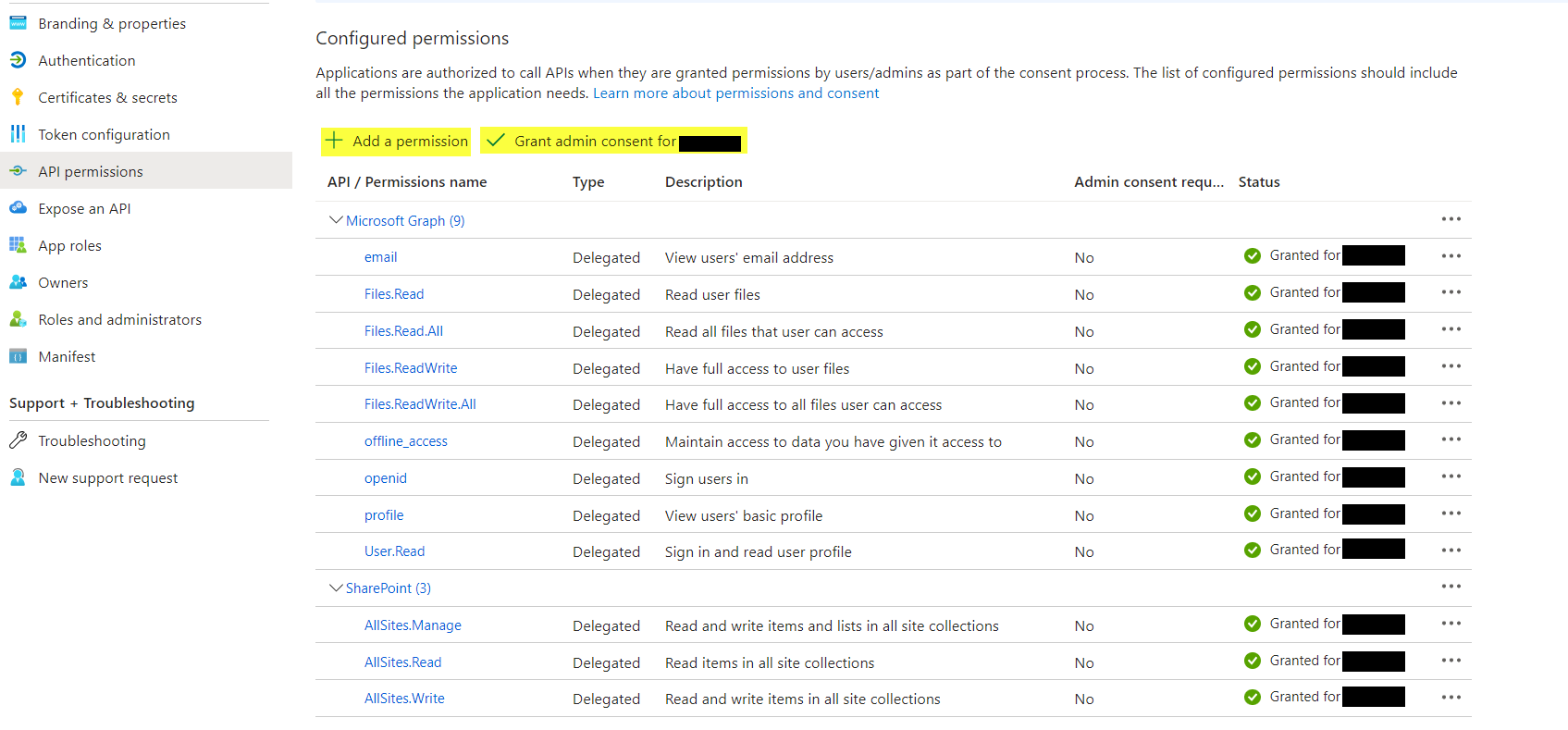

Register App API Permission

Add permission:

Microsoft Graph
offline_access
openid
User.Read
profile
Files.Read.All
Files.ReadWrite.All
SharePoint
AllSites.Manage
AllSites.Read
AllSites.Write

Click on Grant admin consent for ....

In Tab Expose an API¶

Register App API Permission

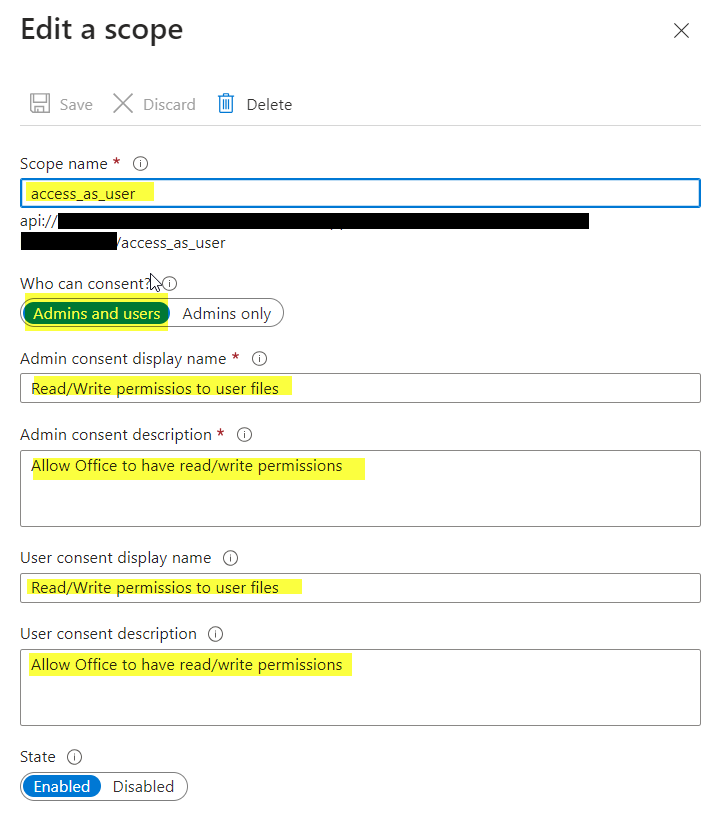

Add a scope

Register App Add Scope

Name: access_as_user Who can consent?: Admins and users Textfields: Enter a Comment

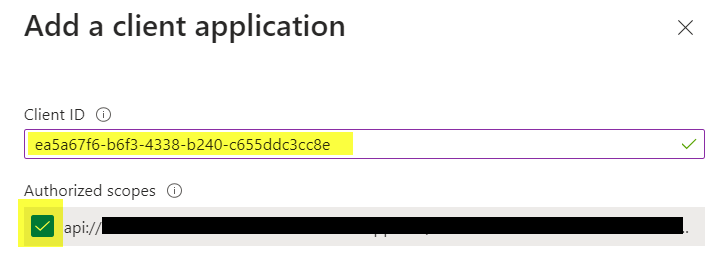

Add a client application

This Client ID is the default ID for give office access, add this ID to the App Registration.

Register App Add Client Application

Client ID: ea5a67f6-b6f3-4338-b240-c655ddc3cc8e

Authorized scopes: check

Demo Application¶

Navigate to: App Registration

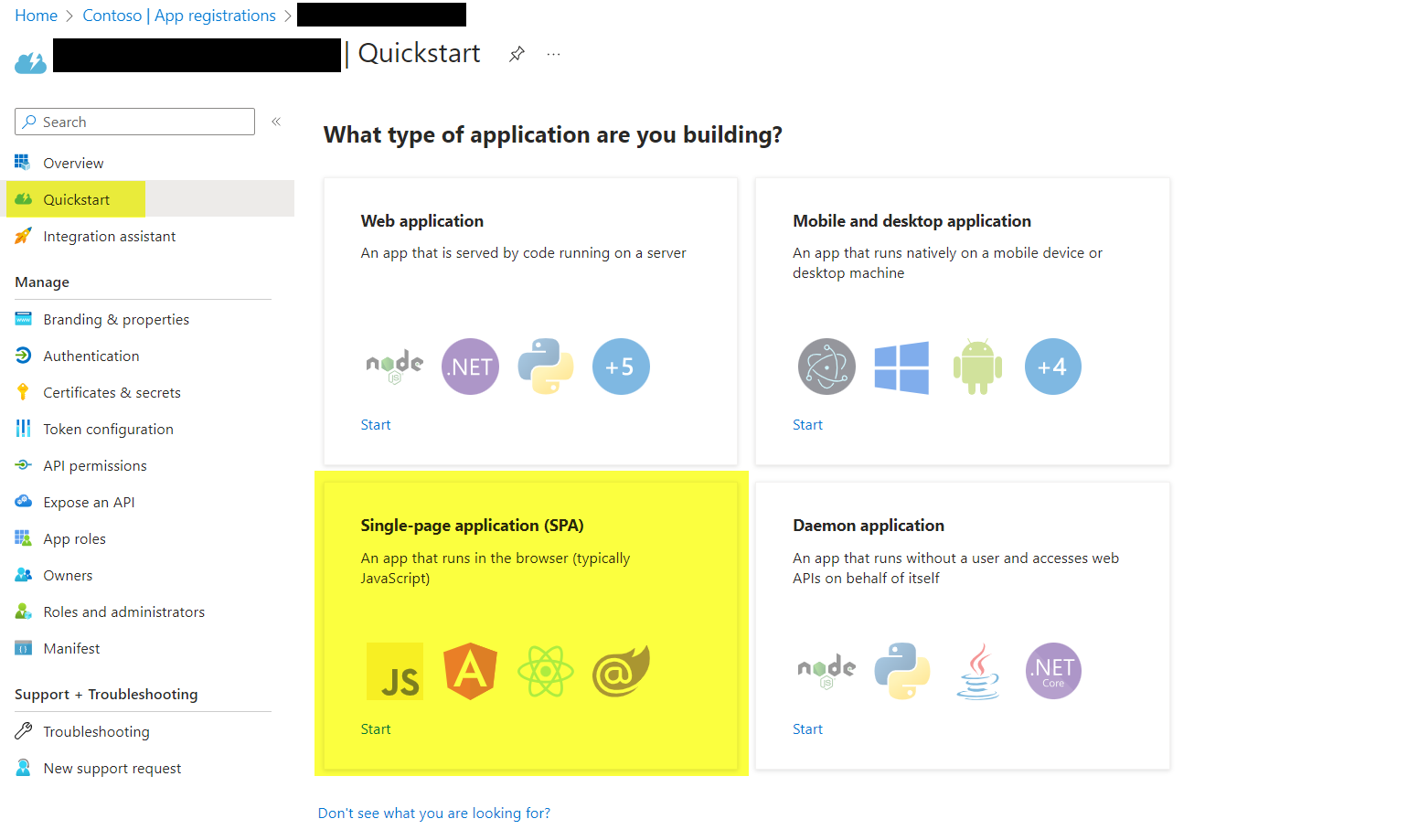

Choose your App Registration and Navigate to Overview and click on Single-page application (SPA)

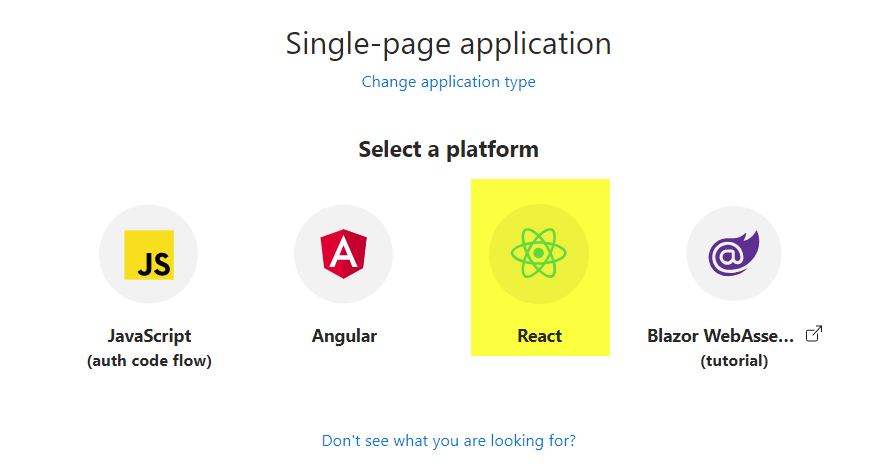

Choose your Framework, in my case is React Single-page application (SPA)

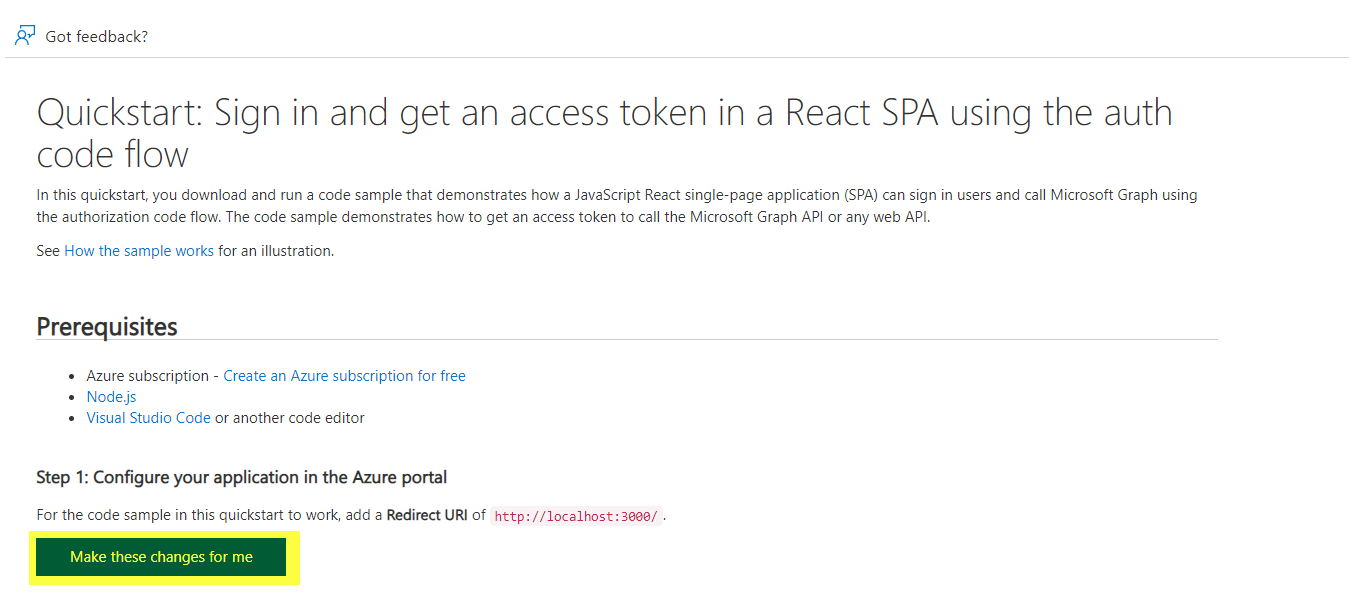

If Localhost for debugging not registerd in Authentication / Single-page application then click on Make this changes for me Add Local

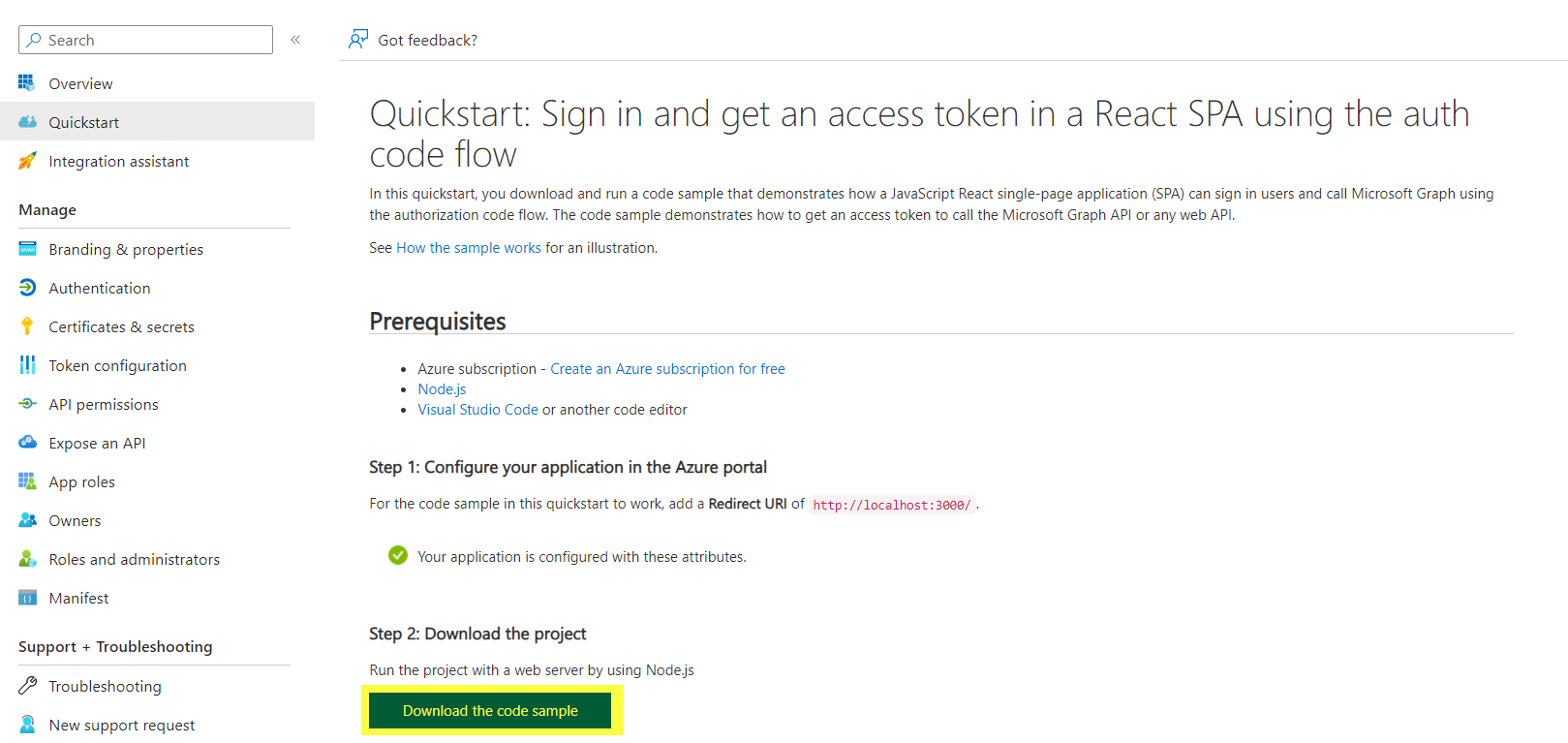

Download the Demo App package Download Demo App

Create Project¶

Install NodeJS 16.20

npm install --global yo
npm install --global generator-office@1.9.7
npm i

Add WebApplication section after Resources node

    <WebApplicationInfo>
      <Id>[AppID]</Id>
      <Resource>api://[ServiceUrl]/[AppID]</Resource>
      <Scopes>
        <Scope>Files.Read.All</Scope>
        <Scope>offline_access</Scope>
        <Scope>openid</Scope>
        <Scope>profile</Scope>
      </Scopes>
    </WebApplicationInfo>

Add LoginOutButtons.tsx

export const LoginOutButtons = () => {
  const isAuthenticated = useIsAuthenticated();
  const { instance } = useMsal();

  const handleLogin = () => {
    instance.loginPopup(loginRequest).catch((e) => {
      console.log(e);
    });
  };
  const handleLogout = () => {
    instance.logoutPopup({
      postLogoutRedirectUri: "/",
      mainWindowRedirectUri: "/",
    });
  };
  return isAuthenticated ? (
    <div>
      <DefaultButton
        iconProps={{ iconName: "SignOut" }}
        onClick={() => handleLogout()}
      >
        Sign OUT
      </DefaultButton>
    </div>
  ) : (
    <div>
      <DefaultButton
        iconProps={{ iconName: "Signin" }}
        onClick={() => handleLogin()}
      >
        Sign IN
      </DefaultButton>
    </div>
  );
};

Add following lines to index.tsx

...
import { PublicClientApplication } from "@azure/msal-browser";
import { msalConfig } from "./authConfig";
import { MsalProvider } from "@azure/msal-react";

const msalInstance: PublicClientApplication = new PublicClientApplication(msalConfig);

...

<MsalProvider instance={msalInstance}>
    <Component title={title} isOfficeInitialized={isOfficeInitialized} />
</MsalProvider>
...

Add following lines to App.tsx

import { MsalContext } from "@azure/msal-react";
import { AccountInfo, IPublicClientApplication, RedirectRequest } from "@azure/msal-browser";
...
const msalInstance: IPublicClientApplication = this.context.instance;
const msalAccounts: AccountInfo[] = this.context.accounts;
const msalIsAuthenticated: boolean = this.context.accounts && this.context.accounts.length > 0;

...

const url = new URL(Office.context.document.url);
const request: RedirectRequest = {
    account: accounts[0],
    scopes: [url.origin + "/.default"],
};

instance.acquireTokenSilent(request).then((response) => {
    fetch(url.origin + "/_api/web/allProperties", {
        method: "GET",
        headers: {
            Authorization: `Bearer ${response.accessToken}`,
            "Content-Type": "application/json",
            Accept: "application/json",
        },
    })
    .then((res) => res.json())
    .then((res) => {
...
    });
});

Test in Word for Browser¶

npm run start:web -- --document {url}

example:

npm run start:web -- --document "https://m365x32525383.sharepoint.com/:w:/r/_layouts/15/Doc.aspx?sourcedoc=%7B3CC1D7E1-D465-4D25-97D6-14892CDF8D63%7D&file=Personal%20employees%20information.docx&action=default&mobileredirect=true"

Allow localhost loopback for Microsoft Edge Web Browser?: No

Create Pakage¶

Create Pakage with command

npm run build

This create the folder dist. Copy the content of this folder to a WebService.

Service Debloyment with Azure Static Web App¶

As folder for the Azure Static Web App can be used a Git Repo folder in DevOps.

Navigate to the Azure Portal

Create a ressource Static Web App in Categorie Web

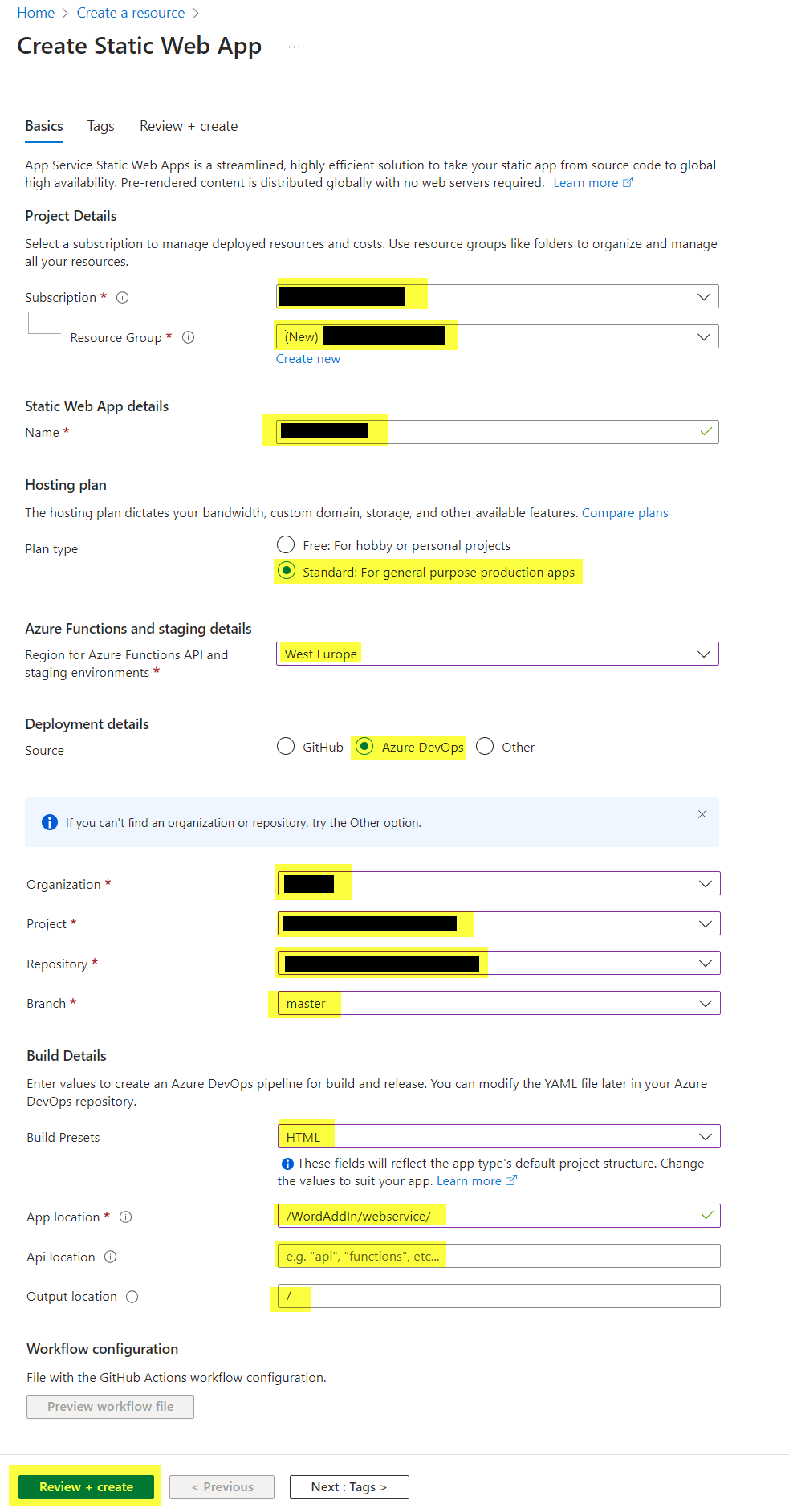

Create Static Web App

Select Source Azure DevOps and choose the right repo

Select HTML as build presets. the App location is the path in the Repo to the webservice directory.

Static Web App Settings

After create the App it generate a *.yml file in the root folder of this repo. You can get it with pull the Git repo.

In YML File edit the section:

  app_location: "/[path to webservice file directory]" # App source code path
  api_location: "" # Api source code path - optional
  output_location: "/" # Built app content directory - optional
  skip_app_build: true
  action: 'upload'

The service need a index.html file in the root folder, you can create an empty file and add it to the webservice deployment folder.

Url from Static WebApp update in webpack.config.js in parameter urlProd used in manifest.xml as example: https://brave-water-033784703.3.azurestaticapps.net/

Register Manifest¶

Edit the Manifest.xml in the dist folder. The Resource url in the WebApplicationInfo section is like api://[WebService Url]/ as example: api://brave-water-033784703.3.azurestaticapps.net/bbfb4a25-931c-41cb-b835-bf72f520375f

The Manifest file define the new action and after upload the file the button is visible in Word.

Navigate to: Admin Center

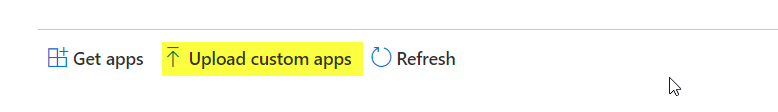

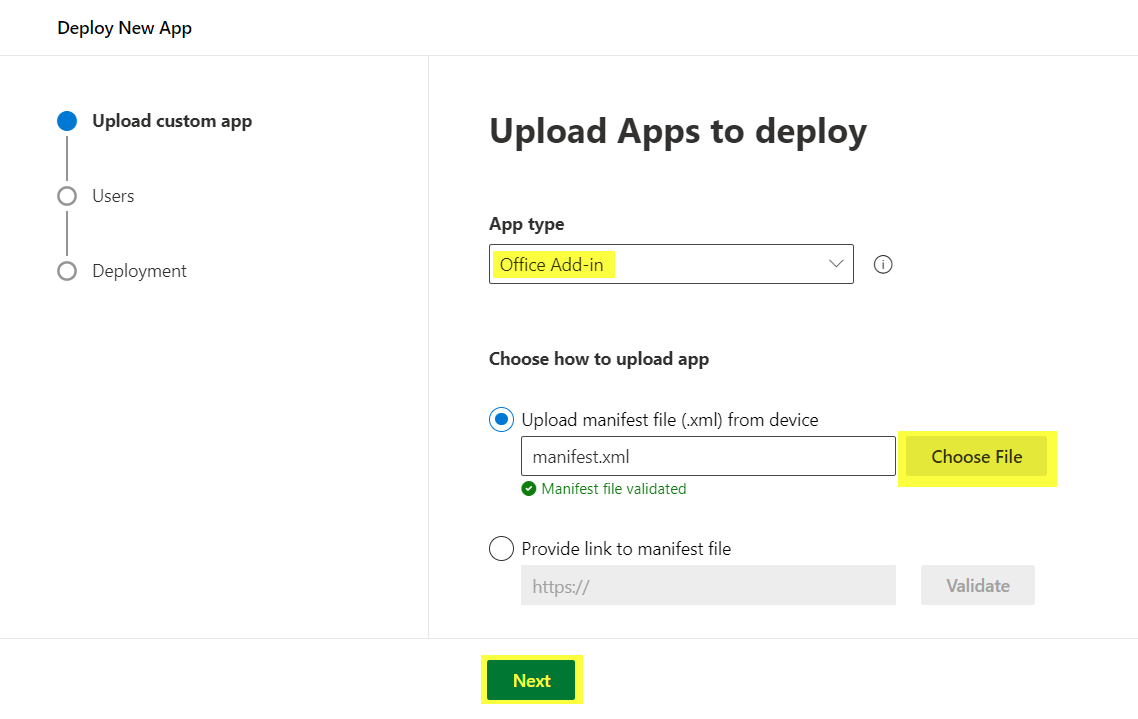

Click on Upload custom apps

Upload Custom Apps
